Description

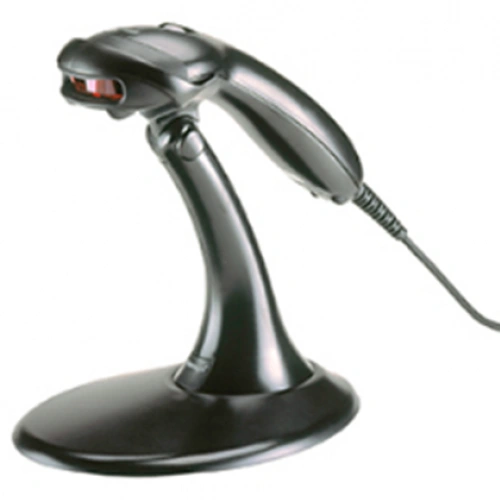

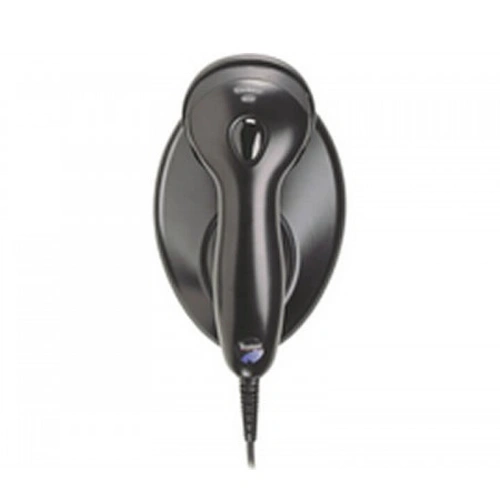

Honeywell Voyager 9520 General Duty Scanners

MECHANICAL

• Dimensions (LxWxH)-198 mm x 78 mm x 56 mm (7.8 in x 3.1 in x 2.2 in)
• Weight-149 g (5.3 oz)

ELECTRICAL

• Input Voltage-5 VDC + 0.25 V
• Operating Power-600 mW (120 mA @ 5 V)
• Standby Power-0.45 W (90mA @ 5 VDC)
• Host System Interfaces-USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Emulation, Light Pen Wand Emulation

SCAN PERFORMANCE

• Scan Pattern-Single scan line
• Scan Speed: 72 scan lines per second
• Scan Angle-Horizontal: 50°
• Symbol Contrast-35% minimum reflectance difference
• Pitch, Skew-68°, 52°
• Decode Capability-Reads standard 1D and GS1 DataBar symbologies

ENVIRONMENTAL

• Operating Temperature-0°C to 40°C (32°F to 104°F)
• Storage Temperature -40°C to 60°C (-40°F to 140°F)
• Humidity-5% to 95% relative humidity, non-condensing
• 04 Years Warranty
