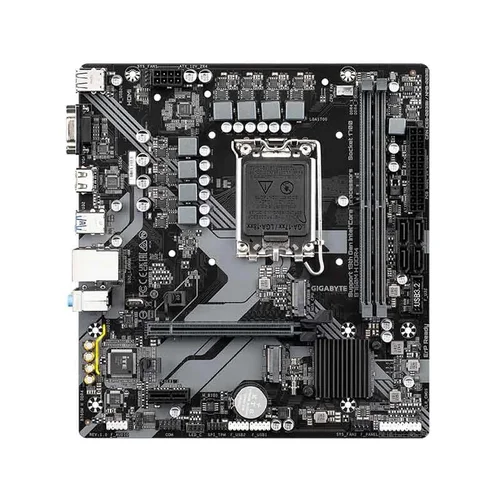

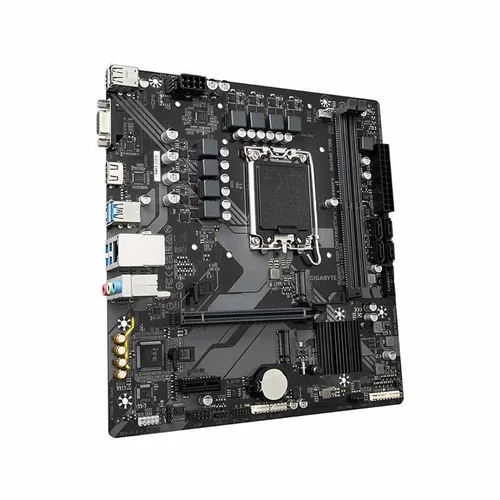

-500x500.webp "GIGABYTE B760M H DDR4 Intel LGA1700 Socket mATX Motherboard")
Pay cash discounted price and save
Pay cash discounted price and save
| Brand & Model | ||
| Brand | Gigabyte | |
| Series | B760 | |
| Model | B760M H | |
| Supported CPU | ||
| CPU Type | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU |
|
| Chipsets | ||
| Chipset | Intel® B760 Express Chipset | |
| Memory | ||
| Number of Memory Slots | 2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory |
|
| Maximum Memory Supported | Memory Max. 64GB Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules | |
| Channel Supported | Dual-channel memory architecture | |
| Graphic | ||
| Graphic | Integrated Graphics Processor- Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. |
|
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| Storage | ||
| Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
|
| Network | ||
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) | |
| Bluetooth | N/A | |
| Audio | ||
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| BIOS | ||
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports | ||
| USB Ports | Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| Back Ports | 2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
|
| Internal Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
|
| Special features | iTE® I/O Controller Chip | |
| Warranty | ||
| Warranty | 3 Year | |
| Form Factor | ||
| Form Factor | Micro ATX Form Factor: 23.0cm x 21.5cm | |
| Others | ||
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
|
| Wireless Communication module | N/A | |
| Special feature | Support for Windows 11 64-bit Support for Windows 10 64-bit Support for GIGABYTE Control Centre (GCC) |
|
The GIGABYTE B760M H DDR4 Intel LGA1700 Socket mATX
motherboard is designed to deliver superior performance and reliability for
Intel's latest processors. Compatible with 14th, 13th, and 12th Gen Intel®
Core™ CPUs, it supports dual-channel DDR4 memory with 2 DIMM slots and XMP
profile support for easy overclocking. Its hybrid 6+1+1 phase digital VRM
ensures power stability under load, making it ideal for productivity or gaming.
With 2 PCIe 4.0 x4 M.2 connectors, it supports ultra-fast NVMe SSDs. The EZ-Latch
PCIe 4.0 x16 slot allows for quick GPU installation or upgrades. Connectivity
options include HDMI, D-Sub, and GbE LAN for fast networking. Smart Fan 6
enhances cooling with multiple sensors and hybrid fan headers. Designed for
compact builds, this mATX motherboard is a great choice for performance users
in Bangladesh and comes with a 3-year replacement warranty (conditions apply).
