| Brand & Model | ||
| Brand | Asus | |
| Series | N100I | |
| Model | PRIME N100I-D D4 | |
| Supported CPU | ||
| CPU Type | Onboard Intel Processor N100 Supports Intel Turbo Boost Technology 2.0 |
|
| Chipsets | ||
| Chipset | Integrated Chipset | |
| Memory | ||
| Number of Memory Slots | 1 x SO-DIMM | |
| Maximum Memory Supported | Max. 16GB | |
| Channel Supported | 3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* * We recommend that you use a 16 GB or less memory module. |
|
| Graphic | ||
| Graphic | 1 x DisplayPort 1 x VGA port 1 x HDMITM port Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Expansion Slots | ||
| Expansion Slots | x PCIe 3.0 x1 slot | |
| Storage | ||
| Storage | Total supports 1 x M.2 slot and 1 x SATA 6Gb/s port 1 x M.2 Socket 3 with M key, type 2260/2280 (supports PCIe 3.0 x 2 mode) 1 x SATA 6Gb/s port |
|
| Network | ||
| LAN | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
|
| Bluetooth | N/A | |
| Audio | ||
| Audio | 3 x Audio jacks |
|
| BIOS | ||
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
|
| Ports | ||
| USB Ports | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)* 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports* 1 x USB 2.0 header supports 2 additional USB 2.0 ports * U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth. |
|
| Back Ports | 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMITM Port 1 x COM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
|
| Internal Ports | Fan and cooling-related 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 1 x SATA 6Gb/s port USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x Chassis Intrude header 1 x LPT header 1 x S/PDIF out header 1 x SPI TPM header (14-1pin) 1 x Speaker Header 1 x System Panel connector |
|
| Special features | Manageability: WOL by PME, PXE Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Screw package for M.2 SSD 1 x Screw package for M.2 Key E Documentation 1 x User guide |
|
| Warranty | ||
| Warranty | 3 Years | |
| Form Factor | ||
| Form Factor | Mini-ITX Form Factor 6.7 inch x 6.7 inch (17cm x 17cm) |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 |
|
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. |
|
| Special feature | Proven Quality - ESD Guards - LANGuard - Overvoltage Protection - Stainless-Steel Back I/O ASUS Q-Design - Q-LED Core ASUS Thermal Solution - CPU heatsink design |
|

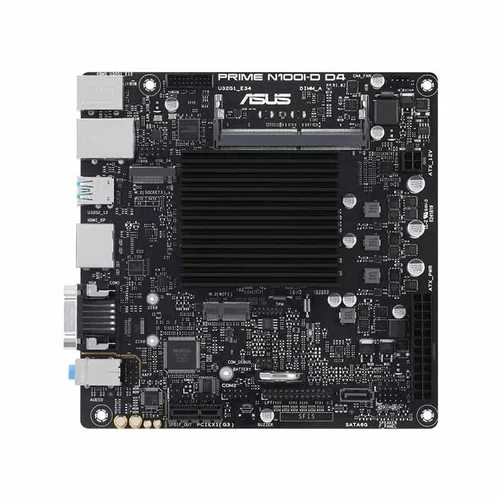

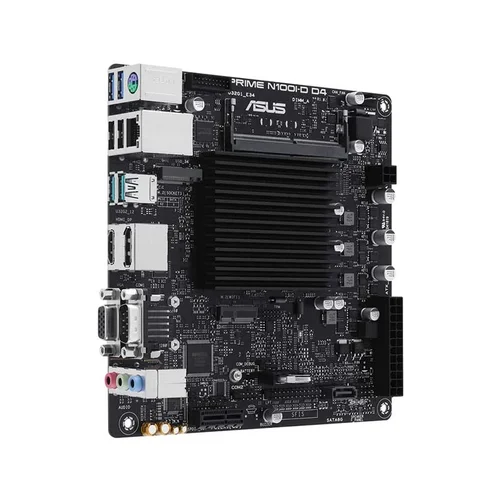

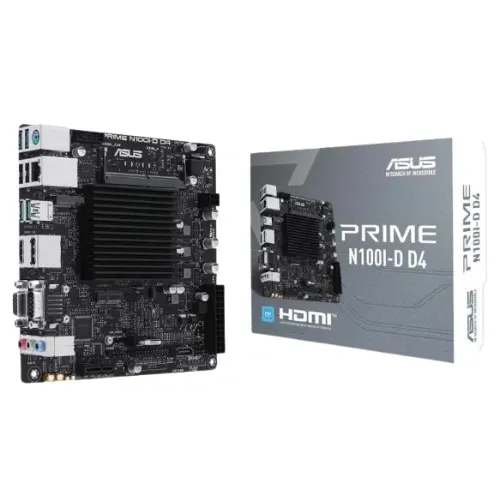

The Asus PRIME N100I-D D4 Intel DDR4 Mini ITX motherboard
is a compact and energy-efficient solution for building a space-saving PC. It
comes with an onboard Intel N100 processor, which delivers smooth and
efficient performance for home, office or media centre applications. This Mini-ITX
board supports up to 16GB of DDR4 memory via a single SO-DIMM
slot, making it ideal for light multitasking. For display output, it has HDMI,
VGA and DisplayPort, providing versatile monitor connectivity.
Network stability is ensured via a Realtek 1Gb Ethernet port, and its
small form factor makes it suitable for compact PC cases or embedded
systems. Built with ASUS reliability, it features essential connectors
and a simplified layout for easy integration. For commercial or personal use,
the Asus PRIME N100I-D D4 offers excellent value and stable performance.
Backed by a 3-year replacement warranty in Bangladesh (conditions
apply), it is a trusted choice for a minimalist and efficient system.
