Brand & Model | ||
Brand | MSI | |
Series | B450 | |
Model | B450M-A PRO MAX II | |
Supported CPU | ||
CPU Type | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors Socket AM4 |
|
Chipsets | ||
Chipset | AMD B450 |
|
Memory | ||
Number of Memory Slots | 2x DDR4 | |
Maximum Memory Supported | 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) |
|
Channel Supported | Supports Dual-Channel mode Supports non-ECC, UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports unbuffered memory |
|
Graphic | ||
Graphic | 1x HDMI™ Support HDMITM 2.0b with HDR port, maximum resolution of 4K 60Hz* 1x DVI Support DVI-D, maximum resolution of 1920x1200 60Hz |
|
Expansion Slots | ||
Expansion Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset) |
|
Storage | ||
Storage | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
Network | ||
LAN | Realtek® 8125 2.5Gbps LAN controller | |
Bluetooth | N/A | |
Audio | ||
Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
BIOS | ||
BIOS | ||
Ports | ||
USB Ports | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
|

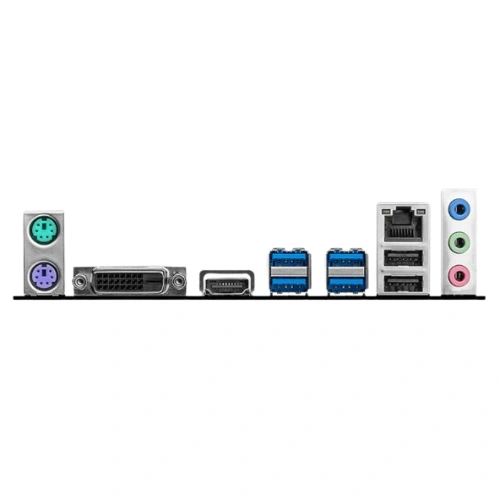

Back Ports | Keyboard/Mouse DVI-D HDMI USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Audio connectors USB 2.0 |
|
Internal Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
|
Special features | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices | |
Warranty | ||
Warranty | 3 Year | |
Form Factor | ||
Form Factor | MATX | |
Others | ||
Bundled Software | N/A | |
Wireless Communication module | N/A | |
Special feature | Support for Windows® 11 64-bit, Windows® 10 64-bit |

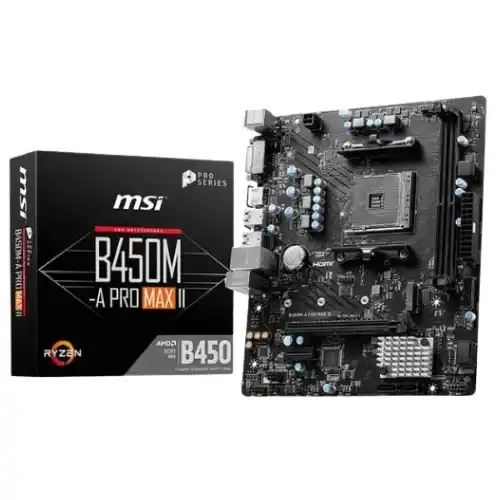

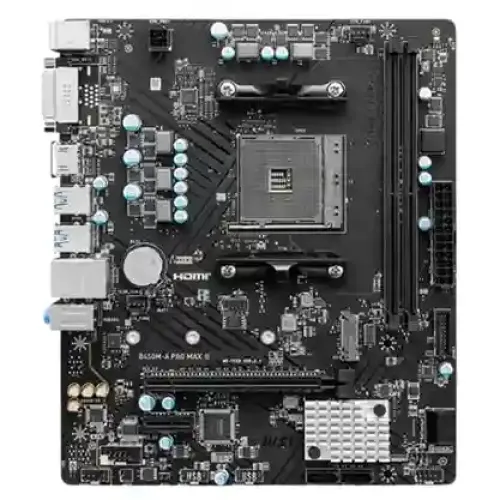

The MSI B450M-A PRO MAX II AMD AM4 DDR4 motherboard is a
powerful and versatile choice for AMD PC builds. It supports a wide range of
processors, including AMD Ryzen™ 5000, 4000, 3000, 2000, 1000 Series and
Athlon™ processors with Radeon™ Vega graphics. With DDR4 memory support up to
4133 MHz (OC), it ensures high-speed performance for gaming and multitasking.
With Turbo M.2 PCIe Gen3 x4, it provides maximum performance for NVMe SSDs.
Audio Boost technology enhances your experience with studio-grade sound, while
2.5G LAN provides a fast and stable connection for professional and multimedia
use. X-Boost automatically detects and increases USB and storage performance,
and Core Boost ensures efficient power delivery for improved CPU performance.
Backed by a 3-year warranty, this motherboard combines durability, speed, and
performance—ideal for gamers, professionals, and PC enthusiasts in Bangladesh.
