| Brand & Model | ||
| Brand | AFOX | |
| Series | INTEL Socket 1151 | |
| Model | IH110D4-MA5-V2 | |
| Supported CPU | ||
| CPU Type | Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts) |
|
| Chipsets | ||
| Chipset | Intel® H110 | |
| Memory | ||
| Number of Memory Slots | 2 x Memory Slots | |
| Maximum Memory Supported | Max. capacity of system memory 32GB | |
| Channel Supported | Dual Channel DDR4 2133MHz | |
| Graphic | ||
| Graphic | Integrated Graphics Processor-Intel® HD Graphics support |
|
| Expansion Slots | ||
| Expansion Slots | N/A | |
| Storage | ||
| Storage | 3 x SATA3 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3) |
|
| Network | ||
| LAN | Realtek RTL8111 Gigabit Ethernet on board Wake-On-LAN |
|
| Bluetooth | N/A | |
| Audio | ||
| Audio | Realtek 662 on board, supports 6-channel audio-out |
|
| BIOS | ||
| BIOS | UEFI BIOS |
|
| Ports | ||
| USB Ports | 2 x USB 3.0 Ports 4 x USB 2.0 Ports |
|
| Back Ports | 1 x HDMI Port 1 x D-Sub (VGA) Port 2 x USB 3.0 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port with LED 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) |
|
| Internal Ports | 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader 1 x LPC DEBUG |
|
| Warranty | ||
| Warranty | 3 Years | |
| Form Factor | ||
| Form Factor | Micro-ATX (17*19cm) |
|
| Others | ||
| Bundled Software | N/A | |
| Wireless Communication module | N/A | |
| Special feature | 1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
|

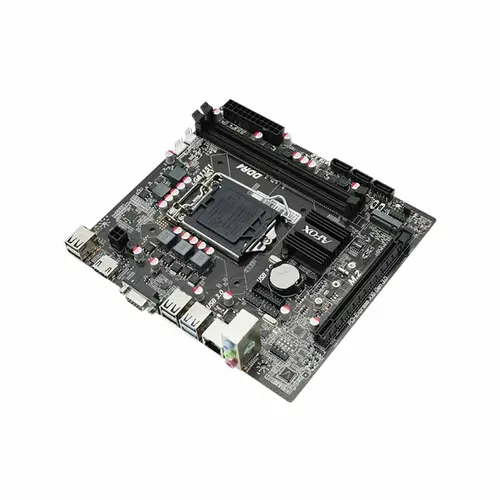

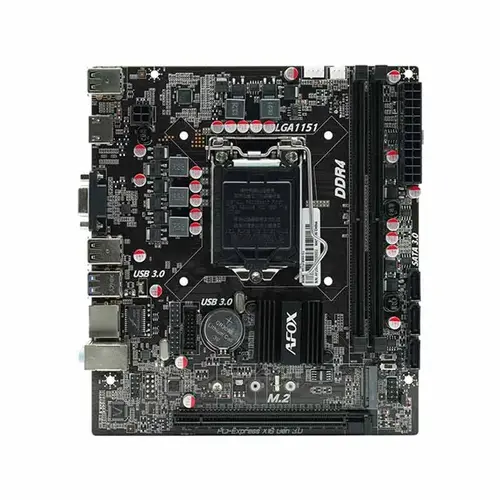

The AFOX IH110D4-MA5-V4 DDR4 Intel motherboard is a
reliable Micro-ATX board built to support a wide range of Intel
processors across generations. Featuring the Intel H110 chipset, this
motherboard is compatible with 6th, 7th, 8th, and 9th Gen Intel Core
i7, i5, i3, Pentium, and Celeron processors via the LGA1151
socket. With 2 DDR4 RAM slots, it supports up to 32GB of
memory, ensuring smooth multitasking and stable performance for everyday
computing, office work, or light gaming. The UEFI BIOS offers a
user-friendly interface for system configuration and updates. Ideal for
budget-conscious users, this board delivers reliable performance and long-term
durability in a compact Micro-ATX form factor. Whether you're building a
new PC or upgrading an older one, the AFOX IH110D4-MA5-V4 offers
excellent value. With a 3-year warranty in Bangladesh, it is a smart
choice for personal or business use.
