| Brand & Model | ||
| Brand | ASROCK | |
| Series | H610 | |
| Model | H610M-H2/M.2 | |
| Supported CPU | ||
| CPU Type | - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology |
|
| Chipsets | ||
| Chipset | Intel H610 | |
| Memory | ||
| Number of Memory Slots | 2 x DDR4 DIMM Slots | |
| Maximum Memory Supported | 64GB | |
| Channel Supported | Dual Channel DDR4 Memory Technology | |
| Graphic | ||
| Graphic | Intel® Xe Graphics Architecture (Gen 12) | |
| Expansion Slots | ||
| Expansion Slots | - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)* |
|
| Storage | ||
| Storage | - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors |
|
| Network | ||
| LAN | - Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H |
|
| Bluetooth | N/A | |
| Audio | ||
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) | |
| BIOS | ||
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
|
| Ports | ||
| USB Ports | - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 6 x USB 2.0 (4 Rear, 2 Front) |
|
| Internal Ports | 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24-pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
|
| Warranty | ||
| Warranty | 3 years | |
| Form Factor | ||
| Form Factor | - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm | |
| Others | ||
| Bundled Software | - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favourites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
|
| Special feature | TPM (Trusted Platform Module ) - 1 x SPI TPM Header |
|

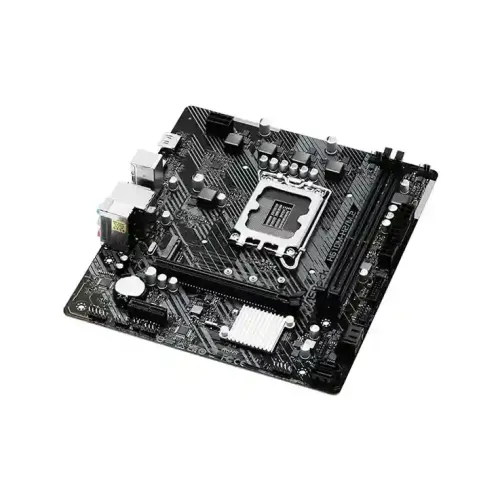

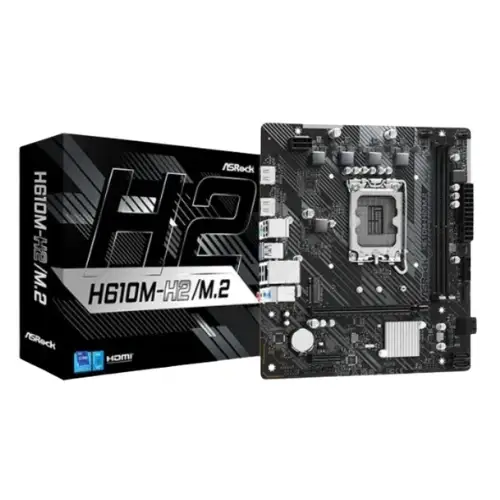

The ASRock H610M-H2/M.2 D4 DDR4 Intel mATX motherboard is a
reliable and affordable solution for building modern Intel-based systems.
Powered by the Intel H610 chipset, this motherboard supports 14th, 13th, and
12th generation Intel processors via the LGA1700 socket, ensuring excellent
compatibility and performance. This micro ATX motherboard supports up to DDR4
3200MHz memory via dual-channel architecture, ensuring smooth multitasking and
system performance. It has two DDR4 DIMM slots for convenient memory upgrades.
It has two HDMI ports for display connectivity, supporting Intel Xe Graphics
for sparkling visuals. Its onboard Realtek ALC897 7.1-channel HD audio ensures
excellent sound quality for entertainment and work. Its user-friendly 128Mb AMI
UEFI BIOS makes system configuration easy and efficient. Although small in
size, this motherboard is powerful in features and is ideal for home, office,
and entry-level gaming PCs.
