| Brand & Model | ||
| Brand | ASUS | |
| Model | PRIME H510M-F R3.0 | |
| Supported CPU | ||
| CPU Type | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports up to Intel 65W CPU Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipsets | ||
| Chipset | Intel H470 Chipset | |
| Memory | ||
| Number of Memory Slots | 2 x DIMM DDR4 |
|
| Maximum Memory Supported | Max. 64GB | |
| Channel Supported | 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666. * 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133. |
|
| Graphic | ||
| Graphic | Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. | |
| Expansion Slots | ||
| Expansion Slots | PCI Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H470 Chipset 1 x PCIe 3.0 x1 slot M.2 Socket Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports |
|
| Storage | ||
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| Network | ||
| LAN | 1 x Realtek 1Gb Ethernet port | |
| Bluetooth | N/A | |
| Audio | ||
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers |
|
| BIOS | ||
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Ports | ||
| USB Ports | Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
|
| Back Ports | 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
|
| Internal Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| Special features | 1 x SPI TPM header (14-1 pin) |
|
| Warranty | ||
| Warranty | 3 Year | |
| Form Factor | ||
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm ) |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM - EZ update ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Special feature | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
|

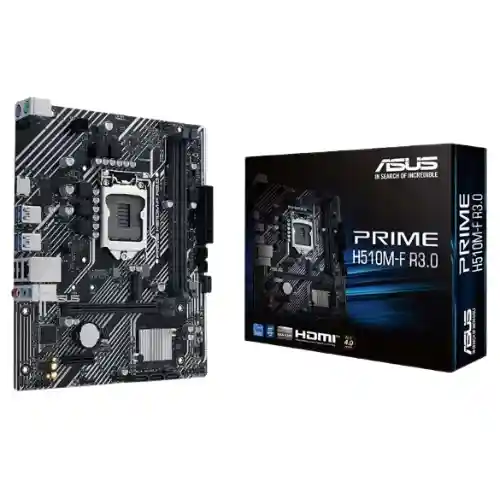

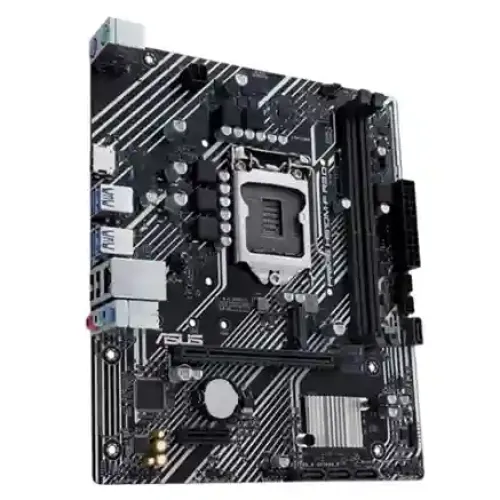

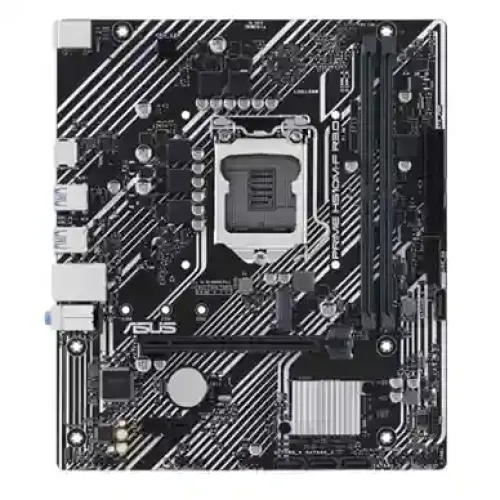

The ASUS Prime H510M-F R3.0 DDR4 Intel Micro ATX Motherboard
is a reliable and high-performance solution for building Intel-based desktop
PCs in Bangladesh. Designed with the Intel H470 chipset, this motherboard
supports 10th and 11th-generation Intel Core processors via the LGA1200 socket,
ensuring smooth computing performance for gaming, office work, and
multitasking. It has 2 DDR4 DIMM slots that support up to 64GB of RAM at speeds
of up to 3200MHz (O.C.), providing fast and stable system performance.
This Micro-ATX motherboard features an HDMI port for
high-quality video output and Realtek 7.1 Surround Sound HD Audio CODEC for an
immersive audio experience. It also includes 1 M.2 slot and 4 SATA 6Gb/s ports
for fast storage expansion. Users can enjoy reliable wired network connectivity
via Realtek 1Gb Ethernet. The built-in SPI TPM header enhances system security,
making it ideal for modern PC builds. With a 3-year warranty, the ASUS PRIME
H510M-F R3.0 is a smart choice for affordable Intel PC setups.
