| Brand & Model | ||
| Brand | Asus | |
| Series | B650 | |
| Model | EX-B650M-V7 | |
| Supported CPU | ||
| CPU Type | AMD Socket AM5 for AMD Ryzen 8000 / 7000 Series Desktop Processors |
|
| Chipsets | ||
| Chipset | AMD B650 |
|
| Memory | ||
| Number of Memory Slots | 2 x DIMM slots | |
| Maximum Memory Supported | Maximum DDR5 96GB Memory Supported | |
| Channel Supported | Dual Channel Memory Architecture | |
| Graphic | ||
| Graphic | 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.) |
|
| Expansion Slots | ||
| Expansion Slots | 2 | |
| Storage | ||
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports | |
| Network | ||
| LAN | 1 x Realtek 2.5Gb Ethernet |
|
| Bluetooth | N/A | |
| Audio | ||
| Audio | ealtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
|
| BIOS | ||
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Ports | ||
| USB Ports | Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| Back Ports | 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
|
| Internal Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| Special features | ASUS Q-Design ASUS 5X PROTECTION III ASUS Thermal Solution |
|
| Warranty | ||
| Warranty | 3 Years | |
| Form Factor | ||
| Form Factor | Micro-ATX |
|
| Others | ||
| Bundled Software | N/A | |
| Wireless Communication module | N/A | |
| Special feature | Operating System: Windows® 11, Windows® 10 64-bit Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 Anchors Documentation 1 x User guide |
|

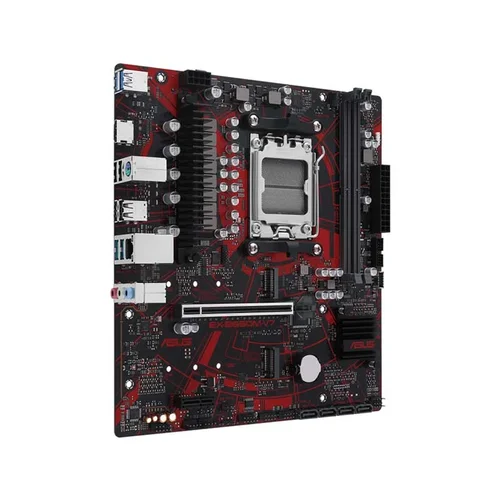

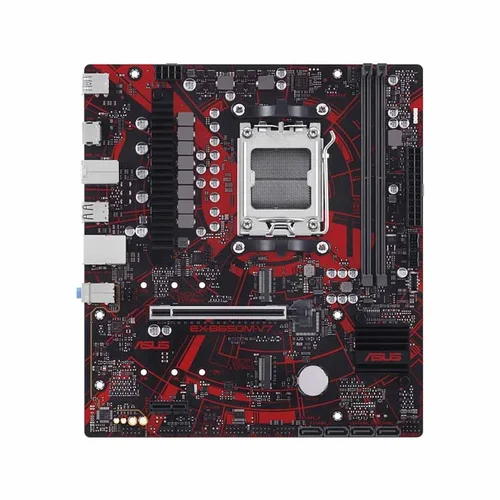

The Asus EX-B650M-V7 AM5 AMD Micro-ATX motherboard is
designed for gamers and creators who demand durability and next-generation
performance. Featuring the AMD B650 chipset and AM5 socket, it
supports the latest Ryzen 7000 series processors for powerful computing.
This motherboard features 2 DDR5 RAM slots supporting up to 8000+ MHz
(OC), ensuring ultra-fast performance. For expansion, it offers 1 x PCIe 4.0
x16 slot, 1 x PCIe x1 slot, 2 x M.2 slots and 4 x SATA
6Gb/s ports for high-speed storage. Equipped with Realtek 2.5Gb
Ethernet, HDMI output, 3 audio jacks and front USB 3.2 Gen 1
Type-C, it provides excellent connectivity and media support. The brilliant
anti-moisture coating and Lightning boot ensure long-lasting, reliable
operation. Ideal for a compact yet powerful build, it is backed by a 3-year
replacement warranty in Bangladesh (conditions apply).
