| Brand & Model | ||
| Brand | Asus | |
| Series | micro-ATX | |
| Model | PRIME B760M-F | |
| Supported CPU | ||
| CPU Type | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipsets | ||
| Chipset | Intel B760 Chipset | |
| Memory | ||
| Number of Memory Slots | 2 x DIMM | |
| Maximum Memory Supported | Max. 96GB | |
| Channel Supported | 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual-channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module |
|
| Graphic | ||
| Graphic | Supports 4K@30Hz as specified in HDMI 1.4. | |
| Expansion Slots | ||
| Expansion Slots | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x1 slot Total supports 2 x M.2 slots |
|
| Storage | ||
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Network | ||
| LAN | 1 x Realtek 1Gb Ethernet port | |
| Bluetooth | N/A | |
| Audio | ||
| Audio | 3 x Audio jacks | |
| BIOS | ||
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Ports | ||
| USB Ports | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
|
| Back Ports | 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks |
|
| Internal Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
|
| Special features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Addressable Gen 2 headers |
|
| Warranty | ||
| Warranty | 3 Year | |
| Form Factor | ||
| Form Factor | micro-ATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|

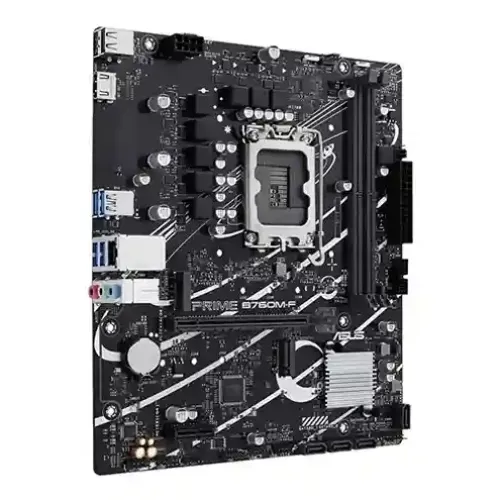

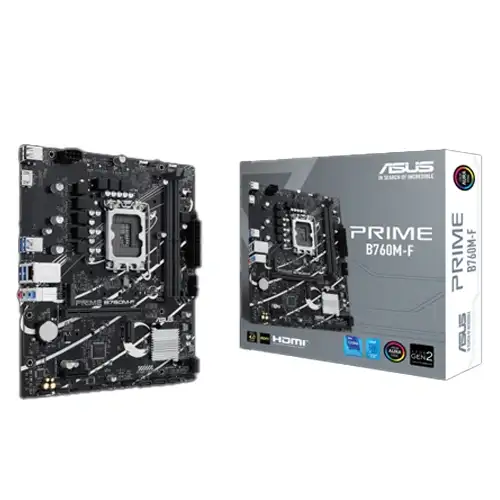

The ASUS PRIME B760M-F mATX DDR5 Intel motherboard is a
reliable and high-performance solution for building modern PCs in Bangladesh.
Powered by the Intel B760 chipset and supporting 14th, 13th and 12th Generation
Intel Core processors (LGA1700 socket), it ensures powerful performance for
gaming, productivity and content creation.
Designed in a compact micro-ATX form factor (9.6 x 8.3
inches), it fits perfectly in small cases and offers essential expansion
options. It has 2 x DDR5 DIMM slots that support up to 96GB of memory for fast
multitasking and improved efficiency. For storage, the board has 2 x M.2 slots
and an additional PCIe 4.0 slot for high-speed SSDs and expansion cards.
Connectivity includes HDMI output and Realtek 1Gb Ethernet for stable
networking. Realtek 7.1 Surround Sound HD Audio enhances the multimedia experience.
Compatible with Windows 11 and 10, it comes with a 3-year warranty in
Bangladesh.
