| Brand & Model | ||
| Brand | MSI | |
| Series | Intel H61 | |
| Model | PRO H610M-E DDR5 | |
| Supported CPU | ||
| CPU Type | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipsets | ||
| Chipset | Intel H610 Chipset | |
| Memory | ||
| Number of Memory Slots | 2x DDR5 memory slots Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel XMP 3.0 OC |
|
| Maximum Memory Supported | Support up to 96GB | |
| Channel Supported | Supports Dual-Controller Dual-Channel mode Supports non-ECC, unbuffered memory |
|
| Graphic | ||
| Graphic | Integrated With Processor | |
| Expansion Slots | ||
| Expansion Slots | 2 | |
| Storage | ||
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| Network | ||
| LAN | Intel I219V 1Gbps LAN controller | |
| Bluetooth | N/A | |
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Ports | ||
| USB Ports | 4x USB 2.0 (Rear) 2x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
| Internal Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable RGB LED connector(JRAINBOW) 1x RGB LED connector(JRGB) 2x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|
| Special features | LED FEATURE: 4x EZ Debug LED | |
| Warranty | ||
| Warranty | 3 Year | |
| Form Factor | ||
| Form Factor | mATX | |

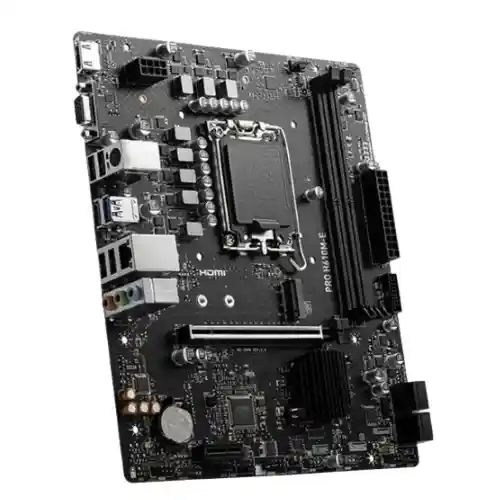

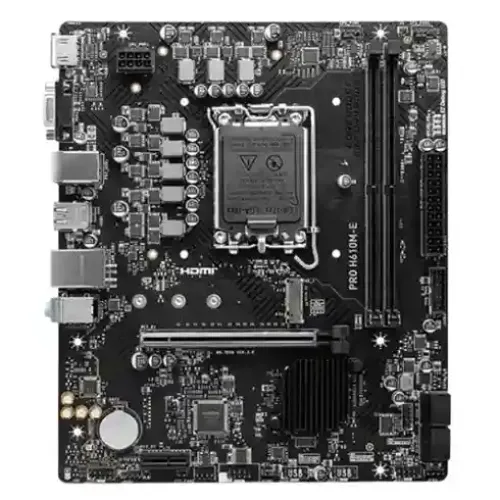

The MSI PRO H610M-E DDR5 mATX Intel motherboard is a
reliable and efficient solution for building modern desktop systems. Powered by
the Intel H610 chipset, this motherboard supports 14th, 13th and 12th
generation Intel Core, Pentium Gold and Celeron processors via the LGA 1700
socket, ensuring strong compatibility and performance. Designed in a compact
mATX form factor (211 mm x 243.84 mm), it provides essential features while
easily fitting into most PC cases.
This motherboard supports DDR5 memory up to 5600 MHz (OC)
and has 2 DIMM slots for improved speed and responsiveness. It features

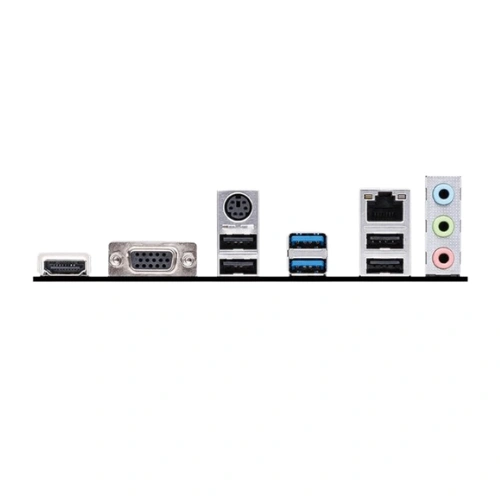

multiple display outputs such as HDMI 2.1, DisplayPort and VGA, providing
flexible connectivity for various setups. The Realtek ALC897 codec delivers
high-definition 7.1-channel audio for immersive sound quality. For networking,
it features an Intel I219V 1Gbps LAN controller, which ensures stable and fast
internet connectivity.
In addition, its 4x EZ Debug LED feature helps in quick
troubleshooting during system setup. With a robust build and a 3-year warranty,
the MSI PRO H610M-E DDR5 motherboard is an excellent choice for users in
Bangladesh who expect performance and reliability.
