| Brand & Model | ||
| Brand | Asus | |
| Model | PRIME B650M-F | |
| Supported CPU | ||
| CPU Type | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipsets | ||
| Chipset | AMD B650 Chipset | |
| Memory | ||
| Number of Memory Slots | 2 x DIMM slots |
|
| Maximum Memory Supported | Max. 96GB | |
| Channel Supported | 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory | |
| Graphic | ||
| Graphic | Supports 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | ||
| Expansion Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0 x1 slot |
|
| Storage | ||
| Storage | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports* AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports |
|
| Network | ||
| LAN | 1 x Realtek 1Gb Ethernet | |
| Bluetooth | N/A | |
| Audio | ||
| Audio | 3 x Audio jacks | |
| BIOS | ||
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Ports | ||
| USB Ports | Rear USB (Total 6 ports) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| Back Ports | 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button |
|
| Internal Ports | Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| Special features | TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin) |
|
| Warranty | ||
| Warranty | 3 Years Warranty | |
| Form Factor | ||
| Form Factor | micro-ATX Form Factor 8.9 inch x 8.6 inch (22.6 cm x 21.8 cm) |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Special feature | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Addressable Gen 2 headers |
|

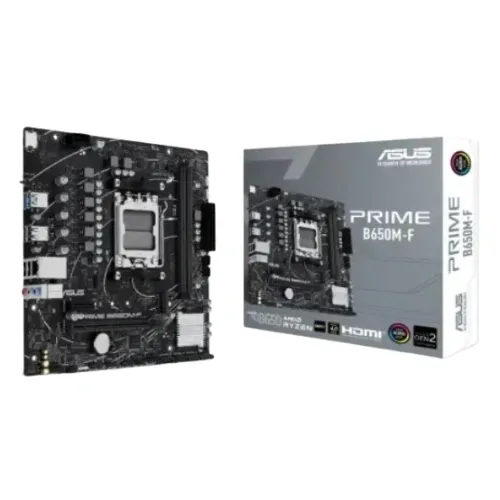

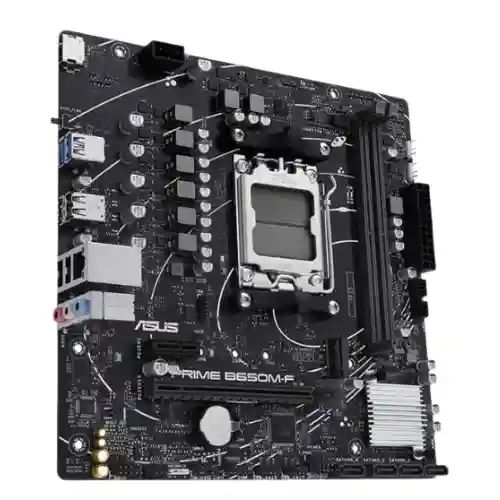

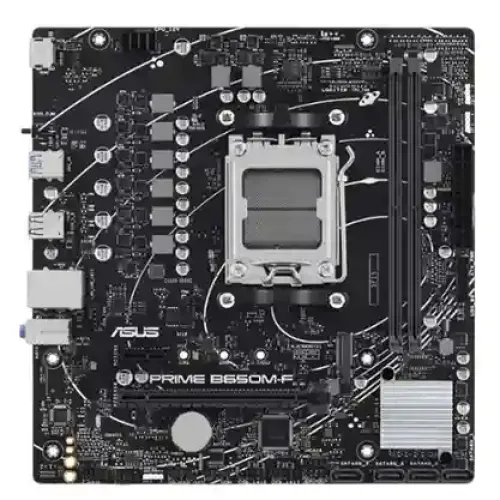

The ASUS PRIME B650M-F DDR5 AMD Micro ATX motherboard is a
powerful and reliable choice for building a modern AMD Ryzen gaming or
productivity PC. Powered by the AMD B650 chipset, this motherboard supports AMD
Ryzen 9000, 8000, and 7000 series processors in the AM5 socket, delivering
outstanding performance and functionality. It features 2 DDR5 DIMM slots that
support up to 96GB of RAM at speeds up to 7200+ MHz (OC), ensuring blazing-fast
multitasking and gaming performance.
The motherboard features an HDMI 2.1 output that supports
stunning 4K@60Hz visuals, making it perfect for high-resolution displays and
multimedia setups. ASUS 5X PROTECTION III technology provides enhanced
durability, stable power delivery, and long-lasting reliability. Users can
enjoy fast, stable network connections via Realtek 1Gb Ethernet, and the 3
audio jacks provide excellent sound quality. The Micro-ATX form factor is ideal
for building a compact yet powerful PC. With a 3-year warranty, the Asus Prime
B650M-F is an excellent motherboard in Bangladesh.
