| Brand & Model | ||
| Brand | ASUS | |
| Series | H610 | |
| Model | PRIME H610M-CS D4 | |
| Supported CPU | ||
| CPU Type | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to an Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipsets | ||
| Chipset | Intel H610 | |
| Memory | ||
| Number of Memory Slots | 2 x DIMM | |
| Maximum Memory Supported | 3200MHz/ 3000MHz/ 2933MHz/ 2800MHz/ 2666MHz/ 2400MHz/ 2133MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem II Max. 64GB |
|
| Channel Supported | Dual Channel Memory Architecture | |
| Graphic | ||
| Graphic | 1 x VGA port 1 x HDMITM port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Expansion Slots | ||
| Expansion Slots | 1 x M.2 slot | |
| Storage | ||
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Network | ||
| LAN | 1 x Realtek 1Gb Ethernet | |
| Bluetooth | N/A | |
| Audio | ||
| Audio | 3 x Audio jacks |
|
| BIOS | ||
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
|
| Ports | ||
| USB Ports | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
|
| Back Ports | Back Panel I/O Ports 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
|
| Internal Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports |
|
| Special features | Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
|
| Warranty | ||
| Warranty | 3 Year | |
| Form Factor | ||
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Wireless Communication module | N/A | |
| Special feature | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design USBGuard |
|

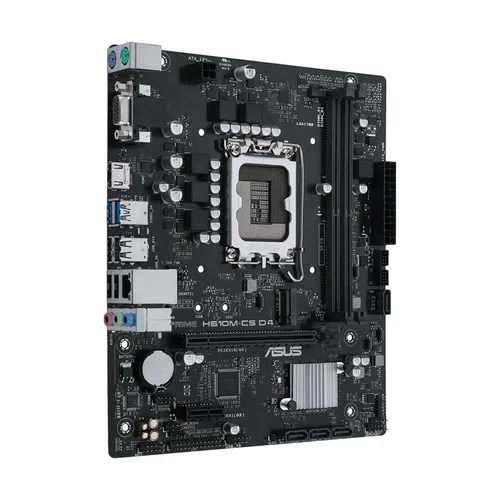

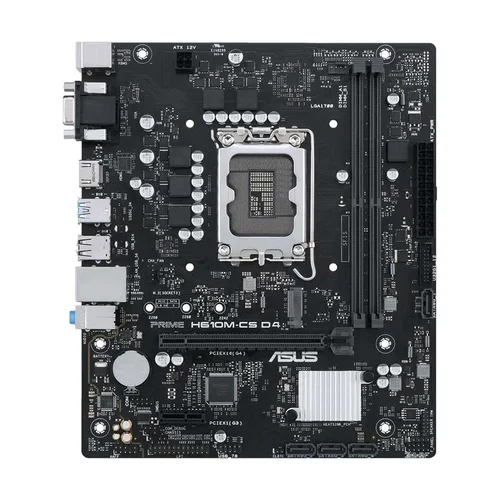

The Asus PRIME H610M-CS D4 DDR4 Intel mATX motherboard
is designed for reliable performance and wide compatibility with the latest
Intel processors. Built on the Intel H610 chipset and featuring
the LGA1700 socket, it supports 12th and 13th Gen Intel Core,
Pentium Gold and Celeron processors. This micro-ATX
motherboard comes with 2 x DIMM DDR4 slots supporting up to 3200MHz
and includes DisplayPort, HDMI and D-Sub outputs for
versatile display connectivity. Expansion is easy with 1 x PCIe 4.0 x16, 1 x
PCIe 3.0 x1, 1 x M.2 slot and 4 x SATA 6Gb/s ports. Additional
features include a 5+1+1 DrMOS VRM, 1Gb Ethernet, USB 3.2 Gen 1 header
and multiple legacy headers such as COM, TPM and LPT. The
anti-humidity luminous coating enhances durability. With a 3-year
replacement warranty in Bangladesh (conditions apply), it is ideal
for office builds or home computing setups.
