| Brand & Model | ||
| Brand | Biostar | |
| Series | B760 | |
| Model | B760MX2-E | |
| Supported CPU | ||
| CPU Type | Support for 12th / 13th/ 14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package | |
| Chipsets | ||
| Chipset | Intel B760 |
|
| Memory | ||
| Number of Memory Slots | 2 x DDR5 DIMM Memory Slot, Max. |
|
| Maximum Memory Supported | Supports up to 128 GB of Memory | |
| Channel Supported | Supports Dual Channel DDR5-6000+ (OC) MT/s, Non-ECC, Unbuffered, Clocked Unbuffered DIMM (CUDIMM) Memory, Support Intel® Extreme Memory Profile (XMP) memory modules | |
| Graphic | ||
| Graphic | Supports DX12 Supports HDCP |
|
| Expansion Slots | ||
| Expansion Slots | INTEL 12th/13th/14th Processors 1 x PCIe 4.0 x16 Slot INTEL B760 Chipset 1 x PCIe 3.0 x1 Slot * Specifications vary by CPU types |
|
| Storage | ||
| Storage | Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports Intel B760 Chipset 1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA): Supports M.2 Type 2242 /2260 /2280 SSD module Supports PCIe 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD & SATA SSD 4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology * Specifications vary by CPU types |
|
| Network | ||
| LAN | Realtek 8125B 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability |
|
| Bluetooth | N/A | |
| Audio | ||
| Audio | Realtek ALC897 7.1 Channels, High Definition Audio |
|
| BIOS | ||
| BIOS | ||
| Ports | ||
| USB Ports | 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers) 8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers) |
|

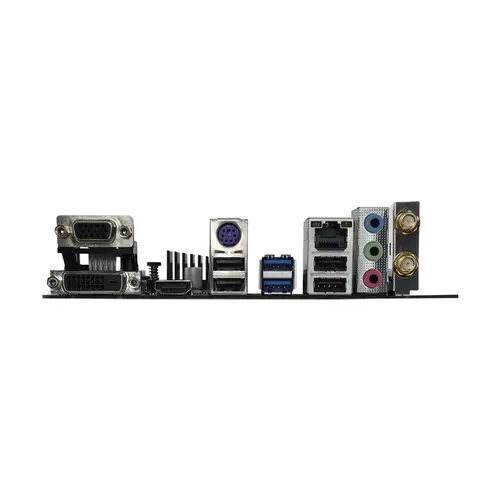

| Back Ports | 1 x WIFI Antenna Port 1 x PS/2 Keyboard/ Mouse Port 1 x HDMI 1 x VGA+DVI Port 2 x USB 3.2 (Gen1) port 4 x USB 2.0 port 1 x LAN port 3 x Audio Jack |
|
| Internal Ports | 4 x SATA III Connector (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header * M.2 (E key) Wi-Fi card is not provided |
|
| Special features | ACCESSORIES: 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 1 x M.2 Anchor 1 x WiFi antenna accessories |
|
| Warranty | ||
| Warranty | 3 Year | |
| Form Factor | ||
| Form Factor | Micro ATX Dimension: 20.8cm x 23.6cm ( W x L ) | |
| Others | ||
| Bundled Software | BullGuard | |
| Wireless Communication module | N/A | |
| Special feature | Supports Windows 10 (64bit) / 11(64bit) CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring |
|

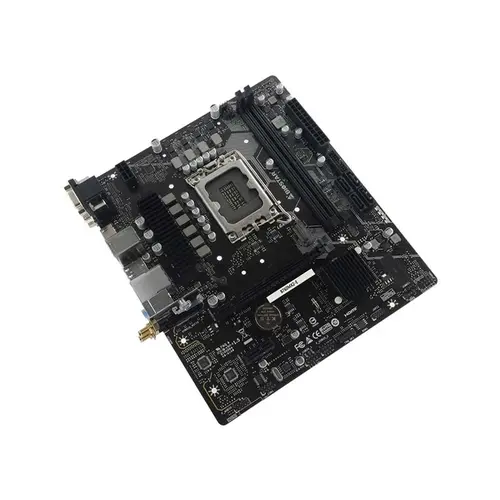

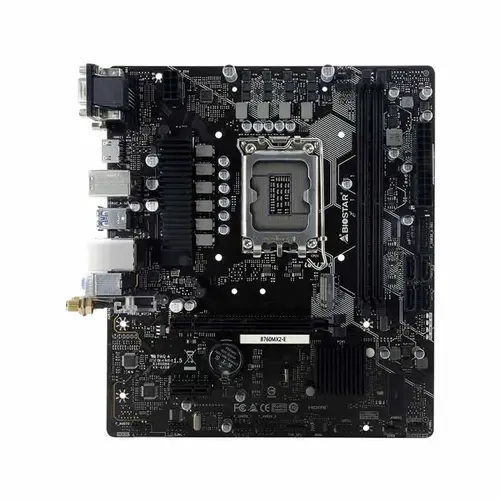

The Biostar B760MX2-E Intel DDR5 Gaming Motherboard
is built for high-performance gaming and productivity, supporting Intel
12th, 13th and 14th Gen Core processors with Intel B760 chipset
architecture. It is equipped with 2 DDR5 DIMM slots supporting up to 128GB
of RAM, providing lightning-fast speed and improved multitasking. Built
for next-generation hardware, it supports PCIe 4.0 GPU and PCIe 4.0
M.2 SSD (up to 64Gb/s) for maximum bandwidth. Enjoy clear visuals with HDMI
4K/2K output and uninterrupted connectivity via USB 3.2 Gen1 ports.
It also has support for WiFi 6 and 6E modules (WiFi card not
included) and features ultra-fast 2.5G LAN for lag-free
networking. Ideal for gamers, streamers and creators looking for reliability
and future-proof performance. Backed by a 3-year warranty in Bangladesh
(conditions apply), the Biostar B760MX2-E is a great value micro-ATX
board for your next-generation Intel build.
