| Brand & Model | ||
| Brand | GIGABYTE | |
| Series | H610 | |
| Model | H610M K | |
| Supported CPU | ||
| CPU Type | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU |
|
| Chipsets | ||
| Chipset | Intel® H610 Express Chipset | |
| Memory | ||
| Number of Memory Slots | 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory |
|
| Maximum Memory Supported | Memory Max. 64GB Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules | |
| Channel Supported | Dual-channel memory architecture | |
| Graphic | ||
| Graphic | Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
|
| Expansion Slots | ||
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| Storage | ||
| Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors |
|
| Network | ||
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) | |
| Bluetooth | N/A | |
| Audio | ||
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| BIOS | ||
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports | ||
| USB Ports | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|

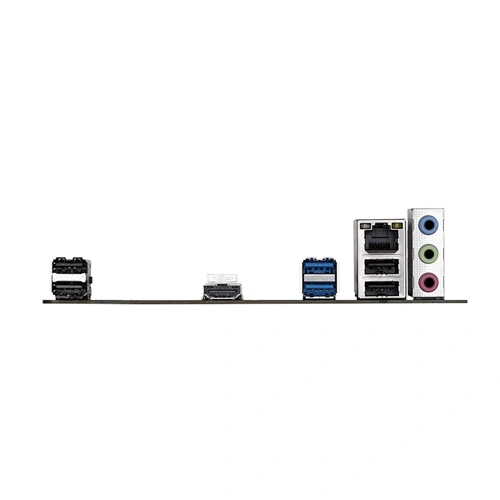

| Back Ports | 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
|
| Internal Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper |
|
| Special features | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
|
| Warranty | ||
| Warranty | 3 Year | |
| Form Factor | ||
| Form Factor | Micro ATX Form Factor: 22.6cm x 18.5cm | |
| Others | ||
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
|
| Wireless Communication module | N/A | |
| Special feature | Support for Windows 11 64-bit Support for Windows 10 64-bit |
|

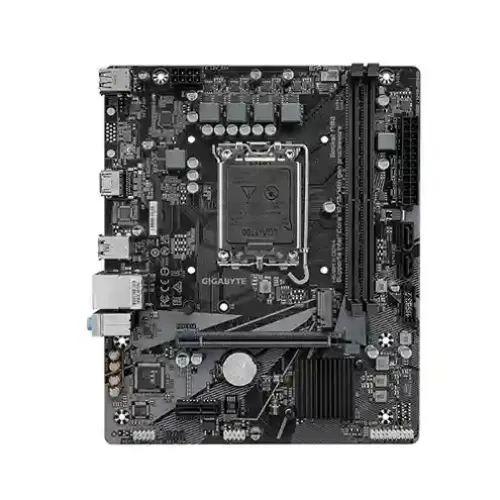

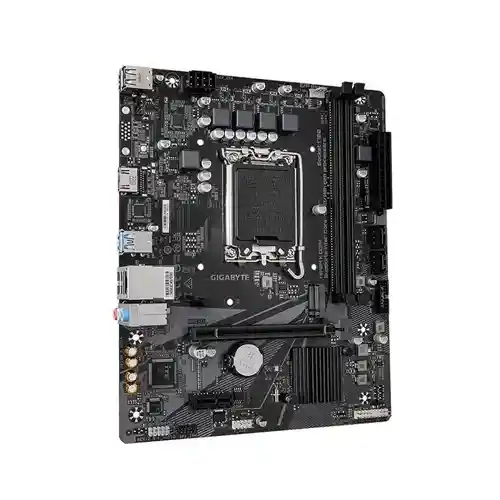

The GIGABYTE H610M K (2.0) Intel DDR4 Micro ATX motherboard
is a budget-friendly yet powerful choice for building a modern Intel system. It
supports 14th, 13th, and 12th Gen Intel® Core™ processors with dual-channel
non-ECC unbuffered DDR4 memory (2 DIMMs), providing excellent stability and
performance for everyday use or productivity tasks. Equipped with a fast NVMe
PCIe 3.0 x4 M.2 slot, it ensures fast storage access, while GbE LAN with
bandwidth management provides stable networking. High-quality audio capacitors
and an audio noise guard enhance the sound experience. Smart Fan 6 technology
offers multiple temperature sensors and hybrid fan headers with a fan stop for
efficient cooling. Additional features such as anti-sulphur resistors and
GIGABYTE APP Centre enhance system durability and usability. Backed by a 3-year
replacement warranty in Bangladesh (conditions apply), this board is ideal for
affordable Intel-based desktop setups.
