| Brand & Model | ||
| Brand | MSI | |
| Series | DDR4 | |
| Model | B550M-A PRO | |
| Supported CPU | ||
| CPU Type | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors |
|
| Chipsets | ||
| Chipset | AMD B550 Chipset | |
| Memory | ||
| Number of Memory Slots | 2x | |
| Maximum Memory Supported | support up to 64GB | |
| Channel Supported | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE |
|
| Graphic | ||
| Graphic | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Expansion Slots | ||
| Expansion Slots | PCI-E X16 x 1<br> PCI-E (Gen4 / Gen3) | |
| Storage | ||
| Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 4.0/ 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices The supported specification depends on the installed processor. |
|
| Network | ||
| LAN | 1x Realtek RTL8111H Gigabit LAN | |
| Bluetooth | N/A | |
| Audio | ||
| Audio | Realtek ALC892/ALC897 Codec. 7.1-Channel High Definition Audio |
|
| BIOS | ||
| BIOS | ||
| Ports | ||
| USB Ports | AMD B550 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| Back Ports | ||
| Internal Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper |
|
| Special features | ||
| Warranty | ||
| Warranty | 3 Years Warranty | |
| Form Factor | ||
| Form Factor | Micro-ATX | |
| Others | ||
| Bundled Software | ||
| Wireless Communication module | ||
| Special feature | ||

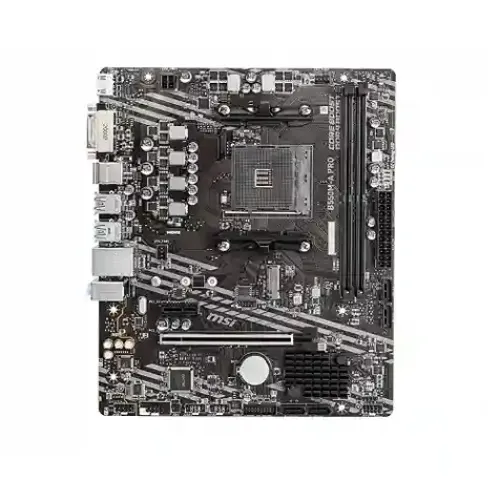

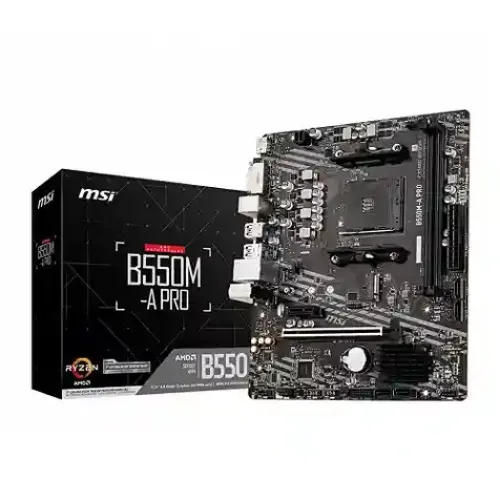

The MSI B550M-A PRO DDR4 motherboard is a powerful and
reliable solution for AMD Ryzen users in Bangladesh. Built on the AMD B550
chipset with AM4 socket support, it is compatible with AMD Ryzen 5000 Series,
4000 G-Series and 3000 Series desktop processors (excluding Ryzen 5 3400G and
Ryzen 3 3200G)
Designed for high-speed performance, it supports DDR4 memory
up to 4600MHz (OC) with a maximum capacity of 64GB. The PCIe 4.0 x16 slot
ensures next-generation graphics performance, while the Lightning Gen4 x4 M.2
slot provides ultra-fast NVMe SSD speeds. Display outputs include HDMI 2.1 (up
to 4K 60Hz) and DVI-D for flexible connectivity.
Equipped with Realtek ALC892/ALC897 HD audio codec and built
on a durable 2-oz-thick copper PCB, this micro-ATX motherboard ensures stable
power delivery and long-term durability. With a 3-year warranty in Bangladesh.
