| Brand & Model | ||
| Brand | ASRock | |
| Model | A520M-HVS | |
| Supported CPU | ||
| CPU Type | Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors 6 Power Phase design |
|
| Chipsets | ||
| Chipset | AMD A520 | |
| Memory | ||
| Number of Memory Slots | 2 x DIMM | |
| Maximum Memory Supported | 64GB | |
| Channel Supported | Dual-channel DDR4 Memory Technology | |
| Graphic | ||
| Graphic | Integrated | |
| Expansion Slots | ||
| Expansion Slots | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* 1 x PCI Express 3.0 x1 Slot |
|
| Storage | ||
| Storage | CPU: 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* Chipset: 4 x SATA3 6.0 Gb/s Connectors |
|
| Network | ||
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
|
| Audio | ||
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone | |
| BIOS | ||
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment |
|
| Ports | ||
| USB Ports | 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
|
| Internal Ports | 1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
| Warranty | ||
| Warranty | 03 Years | |
| Form Factor | ||
| Form Factor | Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm | |
| Others | ||
| Special feature | ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
|

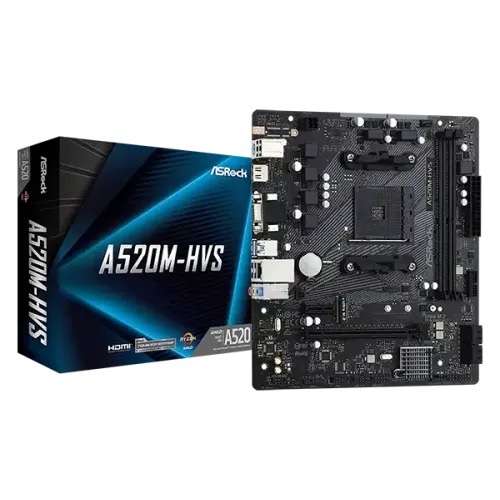

The ASRock A520M-HVS DDR4 AMD Motherboard is a compact and
practical motherboard designed for building reliable AMD desktop PCs. Featuring
the AMD A520 chipset and AM4 socket, this motherboard supports compatible AMD
Ryzen 3000, 4000 G-Series, 5000, and 5000 G-Series desktop processors, making
it suitable for home, office, gaming, and everyday computing.
With a Micro-ATX form factor, the motherboard fits into
compact PC cases while providing essential connectivity and expansion options.
It features 2 memory slots and supports up to 64GB of DDR4 memory, providing
ample power for multitasking and heavy desktop applications.
For fast storage, the ASRock A520M-HVS includes 1 Ultra M.2
slot. Network connectivity is provided via Realtek Gigabit LAN for reliable
wired networking. Display connectivity includes D-Sub and HDMI outputs,
allowing for connection to compatible displays.
This motherboard also features 1× SPI TPM header for
supported security applications. For those looking for an ASRock AM4 motherboard
in Bangladesh, the A520M-HVS is a viable choice for building an AMD-based
desktop PC. It comes with a 3-year warranty.
