| Brand & Model | ||
| Brand | MSI | |
| Series | H61 Series | |
| Model | PRO H610M-S | |
| Supported CPU | ||
| CPU Type | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipsets | ||
| Chipset | Intel H610 Chipset | |
| Memory | ||
| Number of Memory Slots | DDR4 2x Slots |
|
| Maximum Memory Supported | 64GB | |
| Channel Supported | 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, unbuffered memory |
|
| Graphic | ||
| Graphic | 1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz |
|
| Expansion Slots | ||
| Expansion Slots | PCI 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) M.2 Socket 1 x m.2 |
|
| Storage | ||
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 2x SATA 6G |
|
| Network | ||
| LAN | Realtek RTL8111H Gigabit LAN | |
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Ports | ||
| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
|
| Internal Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports |
|
| Special features | 1x HDMI 1.4 with HDR port | |
| Warranty | ||
| Warranty | 3 Year | |
| Form Factor | ||
| Form Factor | mATX 200mmx236.16mm |
|
| Others | ||
| Special feature | 4x EZ Debug LED | |

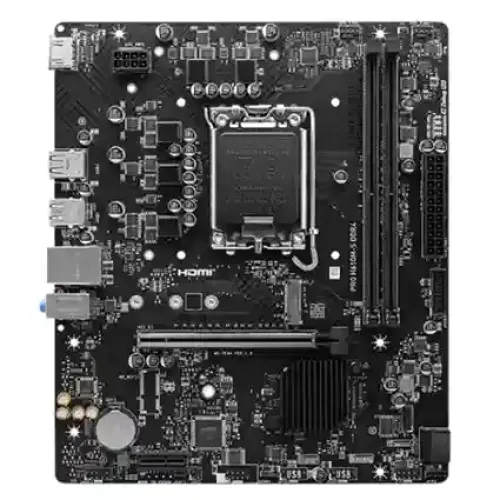

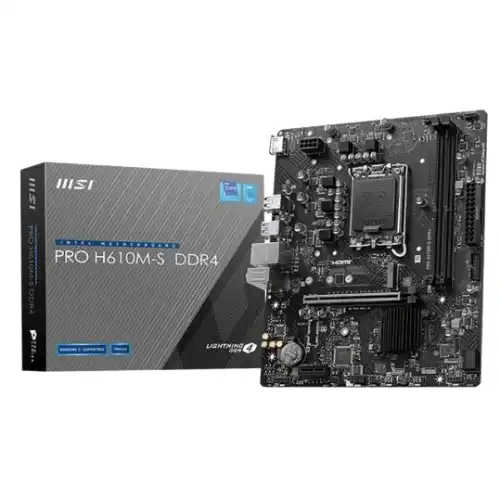

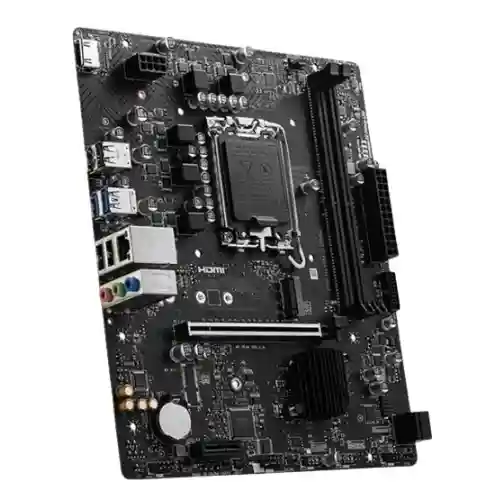

The MSI Pro H610M-S DDR4 Intel Motherboard is a reliable and
affordable motherboard for users in Bangladesh who want stable performance for
office work, multitasking, and everyday computing. Built with the Intel H610
chipset, this mATX motherboard supports 14th, 13th, and 12th generation Intel
processors using the LGA1700 socket, ensuring excellent compatibility for
modern PC builds.
This motherboard supports up to 96GB of DDR4 RAM via dual
memory slots, providing smooth system performance and faster responsiveness. It
features an M.2 slot for high-speed SSD storage, HDMI output for crystal-clear
visuals, and Realtek RTL8111H Gigabit LAN for reliable network connectivity.
The Realtek ALC897 codec with 7.1-channel HD audio delivers excellent sound
quality for entertainment and work.
Additional features like EZ Debug LED and TPM 2.0 support
improve troubleshooting and system security. With its robust construction and
3-year warranty, the MSI Pro H610M-S DDR4 is an excellent choice for Intel
desktop users in Bangladesh.
