| Brand & Model | ||
| Brand | Asus |
|
| Series | DDR4 | |
| Model | PRIME H610M-F D4 R2.0 | |
| Supported CPU | ||
| CPU Type | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|
| Chipsets | ||
| Chipset | Intel H610 | |
| Memory | ||
| Number of Memory Slots | 2 x DIMM | |
| Maximum Memory Supported | 96GB Max | |
| Channel Supported | 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual-channel memory architecture |
|
| Graphic | ||
| Graphic | 1 x HDMI port Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Storage | ||
| Storage | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
|
| Network | ||
| LAN | 1 x Realtek 1Gb Ethernet | |
| Bluetooth | N/A | |
| Audio | ||
| Audio | 3 x Audio jacks | |
| BIOS | ||
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Ports | ||
| USB Ports | 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) |
|
| Back Ports | 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks |
|
| Internal Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage Related 1 x M.2 slot (Key M) 2 x SATA 6Gb/s ports |
|
| Warranty | ||
| Warranty | 3 Years Replacement (Condition Applied) | |
| Form Factor | ||
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 - EPU - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Special feature | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design |
|

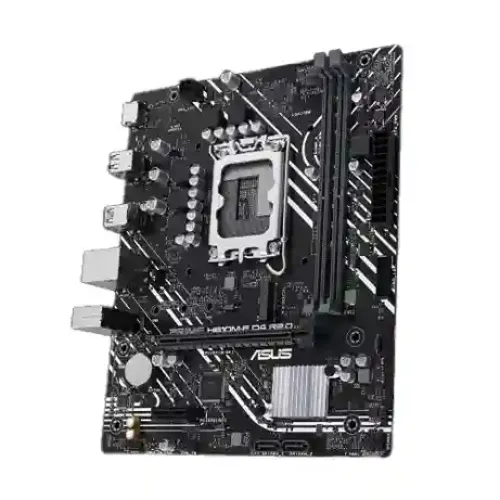

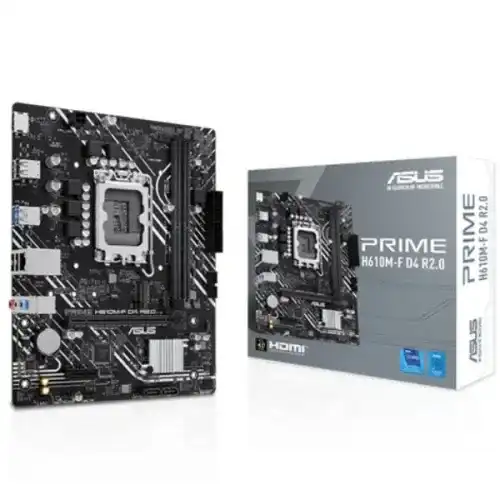

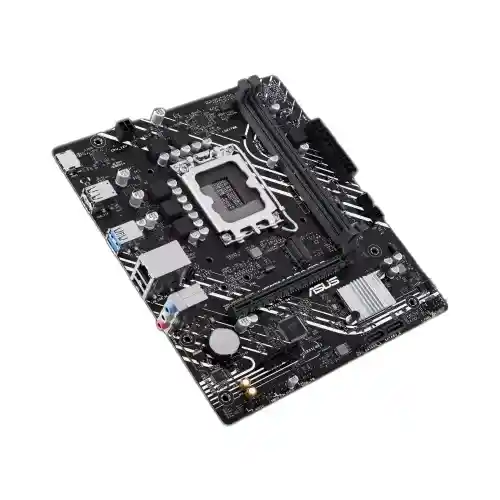

The ASUS PRIME H610M-F D4 R2.0 mATX DDR4 Intel motherboard
is a reliable and affordable platform for building 12th, 13th and 14th
generation Intel systems in Bangladesh. Powered by the Intel H610 chipset and
supported by LGA1700 socket processors, including Intel Core, Pentium Gold and
Celeron CPUs, it ensures stable performance for office, home and entry-level
gaming PCs.
This micro-ATX motherboard features 2 DDR4 DIMM slots that
support up to 64GB of memory for smooth multitasking. It also features 1 x M.2
slot (Key M, 2242/2260/2280, PCIe 3.0 x4 mode) and 2 x SATA 6Gb/s ports for
flexible storage options. The board offers HDMI output for integrated graphics,
Realtek 1Gb Ethernet for reliable networking and Realtek 7.1 HD Audio for
immersive sound. With 128 MB Flash ROM and UEFI AMI BIOS, it ensures easy
configuration. With a 3-year warranty in Bangladesh.
