| Brand & Model | ||
| Brand | ARKTEK | |
| Series | H61 | |
| Model | AK-H61M EL | |
| Supported CPU | ||
| CPU Type | Intel® Socket 1155 for Intel Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors |
|
| Chipsets | ||
| Chipset | Intel H61 Chipset |
|
| Memory | ||
| Number of Memory Slots | 2 x Memory Slots | |
| Maximum Memory Supported | DDR3 1600/ 1333/1066 memory |
|
| Channel Supported | Dual Channel | |
| Graphic | ||
| Graphic | Intel® Graphics Media Accelerator X4500 HD | |
| Expansion Slots | ||
| Expansion Slots | N/A | |
| Storage | ||
| Storage | 4 x SATA ports | |
| Network | ||
| LAN | Realtek 8105E/8111E 100/1000 Mbps (Optional) |
|
| Bluetooth | N/A | |
| Audio | ||
| Audio | Realtek 6-Channel Audio Codec |
|
| BIOS | ||
| BIOS | UEFI BIOS | |
| Ports | ||
| USB Ports | 6 x USB 2.0 ports | |
| Back Ports | 1 x VGA port 1 x HDMI port 6 x USB 2.0 port 1 x LAN jack 3 x Audio jack | |
| Internal Ports | On-Board Pinheads' / Connectors: 2 x USB 2.0 pin-header supports additional 4 USB 2.0 ports 1 x Front Panel Audio pin-header | |
| Special features | 6 mounting holes | |
| Warranty | ||
| Warranty | 2-Year | |
| Form Factor | ||
| Form Factor | Micro-ATX (21 x 21 cm) | |
| Others | ||
| Bundled Software | N/A | |
| Wireless Communication module | N/A | |
| Special feature | 1 x SATA cable 1 x I/O Backboard 1 x User Manual 1 x Driver CD | |

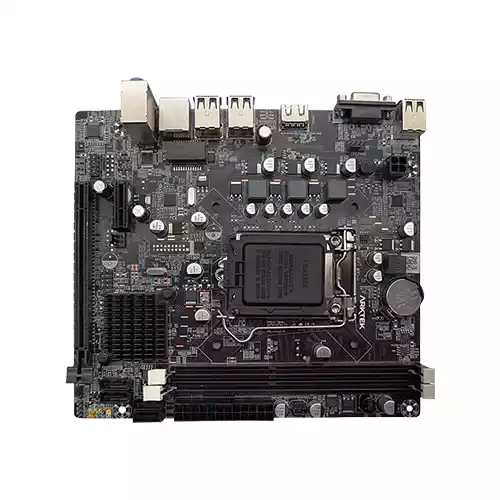

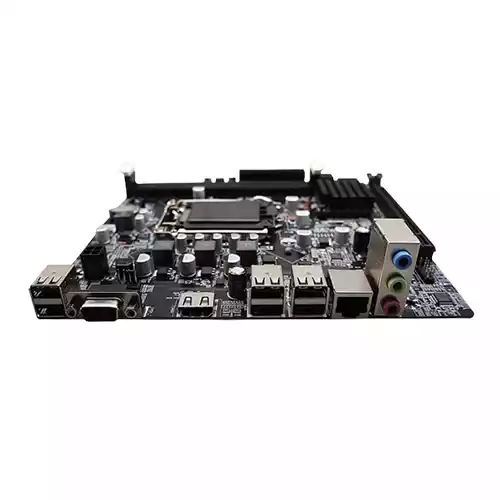

The ARKTEK AK-H61M EL Intel 3rd Gen Micro-ATX motherboard
is a reliable, budget-friendly solution for everyday computing and light
productivity tasks. Built to support Intel Socket 1155 processors,
it is compatible with 2nd and 3rd generation Intel Core i7,
i5, i3, Pentium and Celeron CPUs. Equipped with 2 DDR3 DIMM
slots, it supports up to 16GB of RAM at speeds of 1600/1333/1066MHz.
For display output, the board has both HDMI and VGA ports, making
it suitable for modern and legacy monitors. It also features Realtek
8105E/8111E Gigabit LAN, ensuring fast and stable network performance.
Designed in a Micro-ATX form factor, it is ideal for compact PC builds
for home or office use. With UEFI BIOS support, the board is easy to
install and configure. With a 2-year official warranty in Bangladesh,
the ARKTEK AK-H61M EL offers great value and performance for
budget-conscious users.
